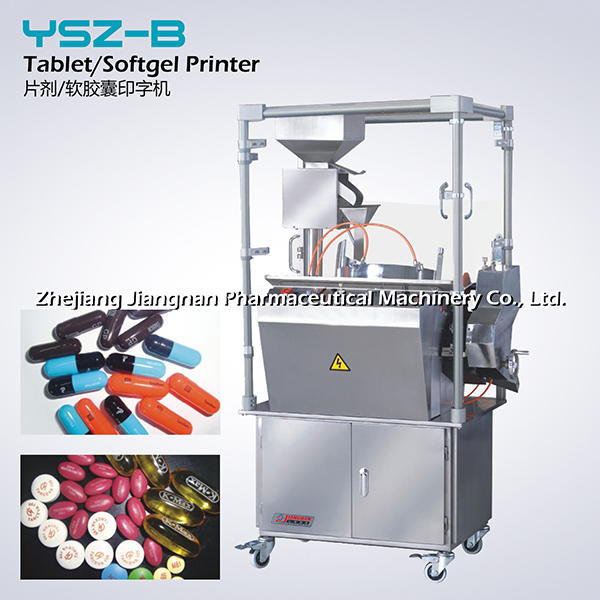

Usage Description:

1. This machine adopts new rotary-plate transferring printing device. It has many advantages, such as firm structure, decent appearance, the machine body equipped with brake wheel to be conveniently moved, simple operation, conveniently replacing another kind, low noises.
2. This machine uses edible printing ink and uses ethanol without water as thinner, which is without poison or side effect. It has characteristics of high-speed printing, clear, equal, quickly dry writing. It is used for printing single-side and single-color printing equipment. It is widely used by medicine, food industry.
3. This machine adapts to all specifications and shapes products. It can shaft-direction print empty capsules, capsules filled with powder. It can also print circle, long-circle, triangle, hexagon, sugar-coat pills, non-polishing and polishingfilm sheet as well as stipulated sugar or varied soft capsule to design, Chinese and English letter etc.

Working principle:

Put the tablets or the capsules into the feeding plate, and let them fall naturally into the grooves of the revolving feeding plate. The surplus tablets or capsules are then expelled under the function of the compressed air, so finally there is only one tablet or capsule enter each of the grooves, ready to be printed. The speed of the printing transfer rubber roller synchronizes with the revolution of the feeding plate, so that when the printing material is ready to be printed, it will be clamped in the pair of the rollers before sending to the delivery outlet.

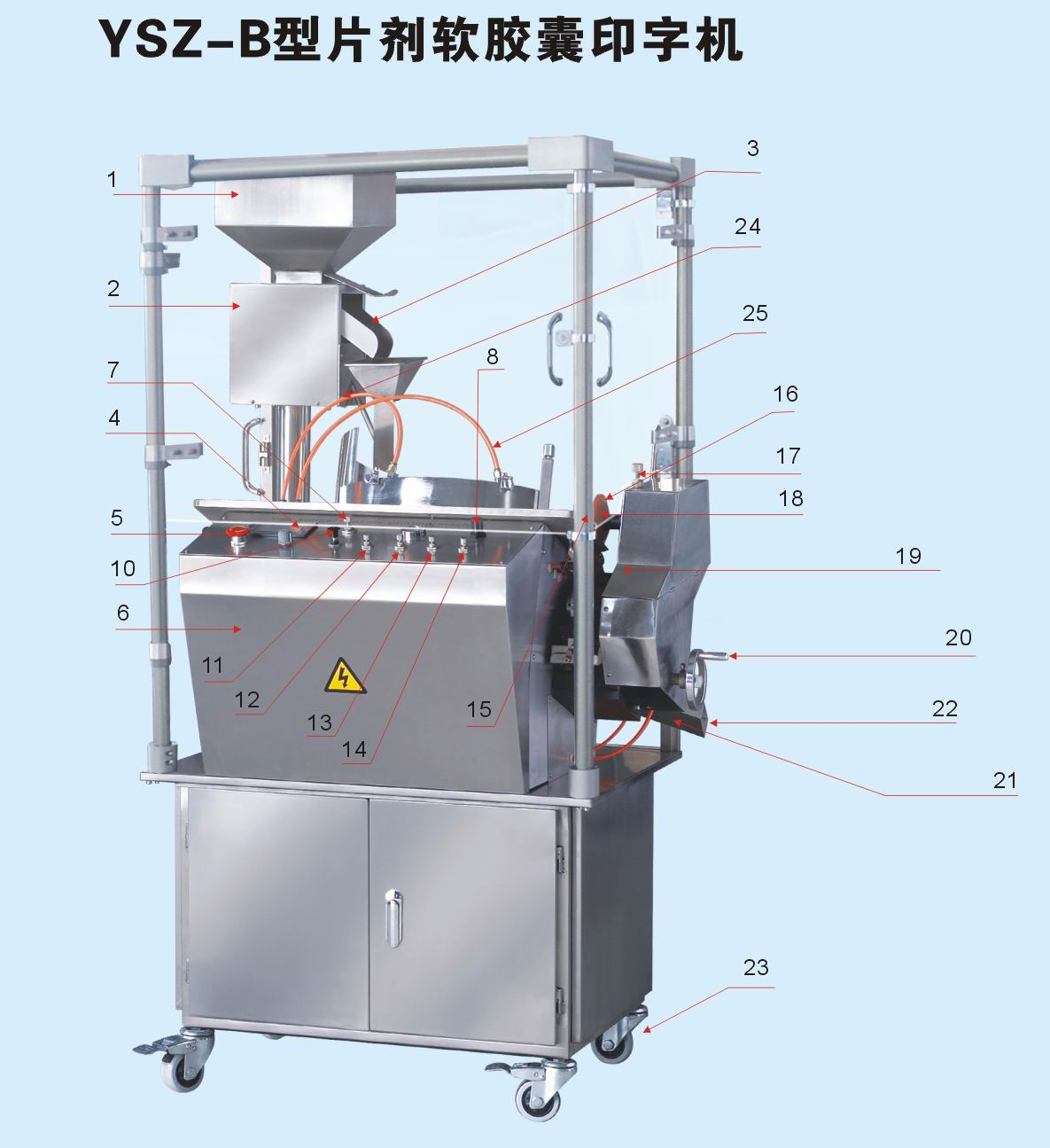

1. Hopper                                      2. Vibration Air

3. Charging Hopper                      4. Man-Machine Interface

5. Main Power Switch                   6. Oil Filter

7. Main Air Source Switch            8. Pressure Reducing Valve

9. Vibration Speed Governor        10. Hand Valve

11. Control Valve Switch (24)        12. Control Valve Switch (25)

13. Control Valve Switch               14. Control Valve Switch (15)

15. Blowing Nozzle                       16. Rubber Wheel

17. Rubber Wheel Adjust Screw   18. Rubber Wheel

19. Printing Wheel                         20. Wallboard Crank

21. Outlet                                       22. Ink Plate

23. Caster Wheel                          24. Blowing Nozzle

25. Blowing Nozzle
